Operating conditions:
Temperature: -40℃-250℃
Pressure: ≤ 1.7MPa
Speeds: ≤ 25m/sec
Applications: Used in all types of rotating equipment, pumps, mixers, agitators, and
compressors. To suit industries such as general chemical, oil refining, petrochemical, pharmaceutical, food processing, pulp and paper, and wastewater treatment.
Materials(to DIN24960):
Stationary ring (SiC/ Inserted TC)
Rotary ring (Carbon/ SIC/ Inserted TC)
Secondary seal (PTFE)
Spring & Other parts (SUS304/ SUS316)
Materials should be selected according to operation condition
Design Features:

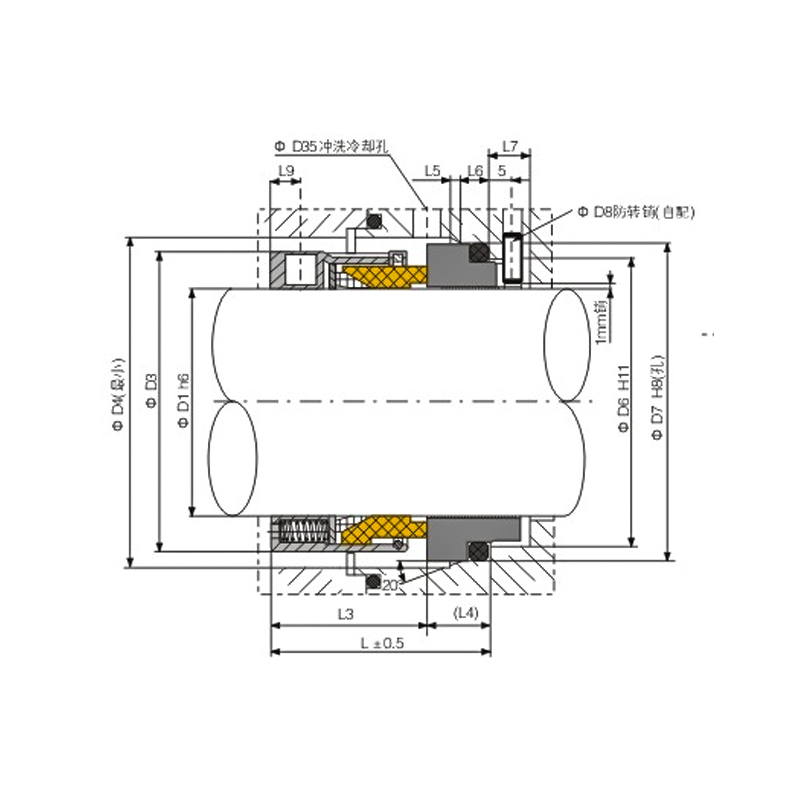

Internally mounted, single face, multi-spring, unbalanced structure and driven by brace ear and draw transmission, any rotation direction, compact construction, it can be mounted conveniently.
Conform to the standard of ISO3069、DIN24960 and GB6556.
PTFE or flexible graphite wedge is used as a secondary seal for use in corrosive fluids and high-temperature applications.

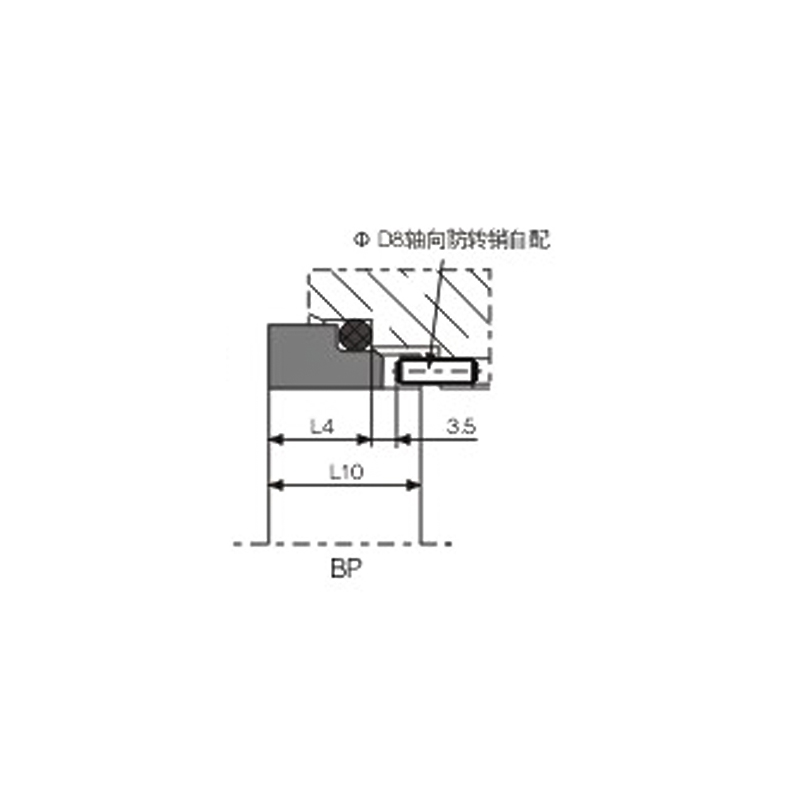

The shape and installation size are identical to 58U.

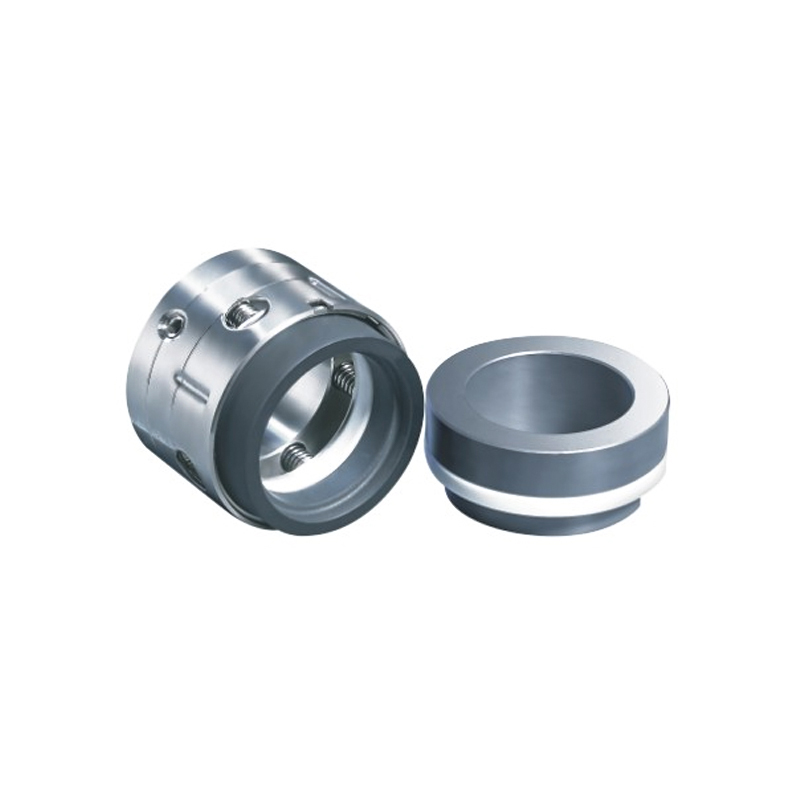

Mechanical seals are crucial components in various industrial applications, ensuring the integrity and efficiency of rotating equipment. The Water Pump Multi Spring O-Ring Mechanical Seal is a high-quality solution designed to meet the demanding requirements of a wide range of industries.
Materials:
The Water Pump Multi Spring O-Ring Mechanical Seal adheres to DIN24960 standards for its material composition. It is comprised of the following components:
Stationary Ring: Made from high-quality materials such as Silicon Carbide (SiC) or Inserted Tungsten Carbide (TC), the stationary ring ensures wear resistance and longevity.
Rotary Ring: This component is available in different material options, including Carbon, Silicon Carbide (SiC), and Inserted Tungsten Carbide (TC), providing compatibility with a wide range of fluids and applications.
Secondary Seal: The secondary seal is crafted from PTFE (Polytetrafluoroethylene), offering good resistance to corrosion and high-temperature environments.
Spring & Other Parts: The spring and various other parts are constructed from high-grade stainless steel, either SUS304 or SUS316, ensuring durability and resistance to corrosive elements.
It's important to note that the choice of materials should be carefully considered based on the specific operating conditions of your application, ensuring the performance and longevity of the mechanical seal.
Design Features:
The Water Pump Multi Spring O-Ring Mechanical Seal boasts several key design features that make it stand out in the market:
Internally Mounted: It features an internal design, ensuring it's suitable for a wide range of applications and provides robust sealing performance.
Single Face: With a single-face design, it simplifies installation and maintenance, making it a cost-effective choice for businesses.
Multi-Spring: The multi-spring configuration ensures enhanced sealing performance, particularly in applications with varying pressure and temperature conditions.
Unbalanced Structure: This unbalanced design is ideal for applications where the seal is subject to fluctuating pressures, providing reliable sealing in such scenarios.
Direction-Agnostic: The mechanical seal can operate in either direction, offering flexibility and convenience in installation.
Compact Construction: With its compact design, it can be easily mounted, even in space-restricted environments.
Conformance to Standards: The seal adheres to the standards of ISO3069, DIN24960, and GB6556, ensuring that it meets rigorous quality and performance expectations.
Secondary Seal Options: The seal offers the flexibility of using PTFE or flexible graphite as a secondary seal, making it suitable for applications involving corrosive fluids and high-temperature conditions.
Interchangeable with 58U: The shape and installation size of this mechanical seal is identical to the industry-standard 58U, making it a seamless replacement option for existing equipment.
In conclusion, the Water Pump Multi Spring O-Ring Mechanical Seal is a reliable and versatile sealing solution for demanding industrial applications. Whether you operate in the chemical, petrochemical, or wastewater treatment industry, this mechanical seal is the ideal choice to safeguard your equipment and processes. Choose the Water Pump Multi Spring O-Ring Mechanical Seal for a sealing solution you can trust.
