Operating conditions:
Temperature: -40℃-150℃
Pressure: ≤ 6.2MPa
Speeds: ≤ 25m/sec
Applications: Used in all types of rotating equipment, pumps, mixers, agitators and compressors. To suit industries such as general chemical, oil refining, petrochemical, pharmaceutical, food processing. pulp and paper, and waste water treatment.
Materials:
Rotary ring (Carbon/ SiC/ Anserted TC)
Stationary ring (SiC/ Inserted TC)
Secondary seal (NBR/ EPDM/ VITON)
Spring & Other parts (SUS304/ SUS316)
Materials should be selected according to operation condition
Design Features:
By adopting inner installation, inside current, single seal face, multi-spring, any rotation direction and balanced structure.
Complies with the standard GB6556, ISO 3069 and DIN 24960.

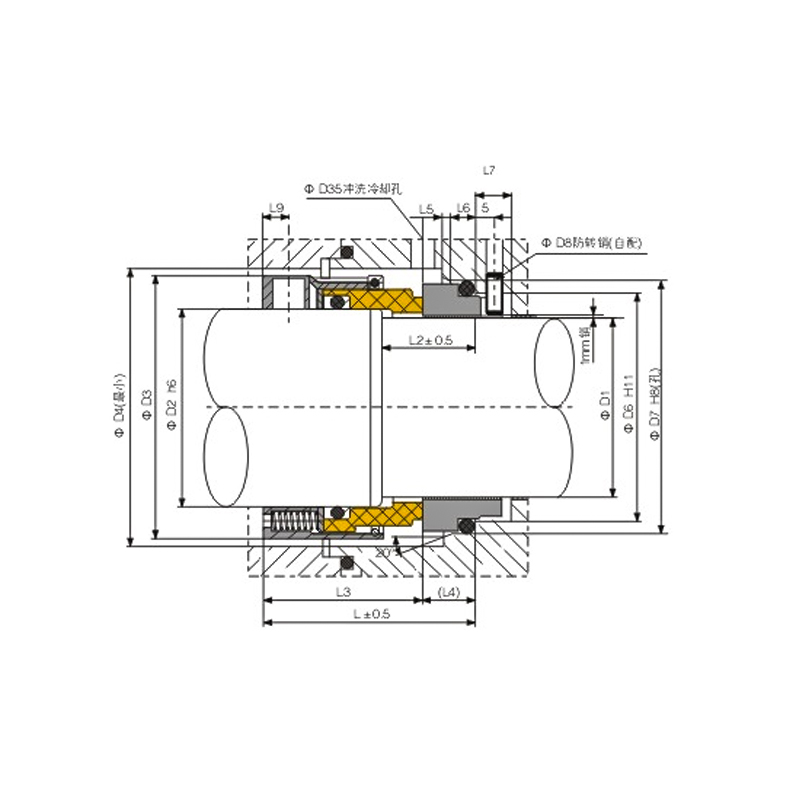

The shape and installation size is identical to 59B.
Mechanical seals play a critical role in various industrial applications, ensuring the integrity and efficiency of rotating equipment, including pumps, mixers, agitators, and compressors. Among these, the Balance Type Mechanical Seal With O-ring Stationary Seat stands out as a reliable and versatile solution designed to meet the demanding needs of a wide range of industries.
Operating Conditions:
The Balance Type Mechanical Seal With O-ring Stationary Seat is engineered to excel in challenging operating conditions. It can perform admirably in a temperature range spanning from -40℃ to 150℃, withstanding temperature without compromising performance. Additionally, it can handle pressures of up to 6.2MPa, making it a suitable choice for high-pressure applications. This seal operates effectively at speeds of up to 25m/sec, ensuring that it remains reliable in various rotating equipment scenarios.
Materials:
The success of a mechanical seal often hinges on the materials used in its construction. The Balance Type Mechanical Seal offers a variety of material options to choose from, allowing for customization according to specific operational requirements. The rotary ring is available in Carbon, Silicon Carbide (SiC), or Anserted TC (Tungsten Carbide). The stationary ring can be crafted from SiC or Inserted TC. For the secondary seal, users can opt for NBR (Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), or VITON. Spring and other critical components are made from durable materials such as SUS304 (Stainless Steel 304) or SUS316 (Stainless Steel 316).
It is crucial to select the appropriate materials based on the specific operating conditions to ensure performance and longevity.
Design Features:
The Balance Type Mechanical Seal With O-ring Stationary Seat boasts a range of design features that make it a standout choice for many industrial applications:
Inner Installation: This seal is designed for inner installation, which minimizes exposure to external elements and enhances its reliability.
Inside Current: The inside current design ensures efficient flow patterns, reducing the risk of leakage and extending the lifespan of the seal.
Single Seal Face: With a single seal face, the seal maintains a compact profile while delivering exceptional performance.
Multi-Spring: The inclusion of multiple springs provides uniform pressure distribution, further enhancing sealing performance.
Any Rotation Direction: This mechanical seal is adaptable to various rotation directions, accommodating the needs of diverse equipment.
Balanced Structure: The balance type design ensures that the mechanical seal operates smoothly and efficiently, reducing wear and tear.
In terms of international standards, the Balance Type Mechanical Seal complies with GB6556, ISO 3069, and DIN 24960. Its shape and installation size are identical to 59B, making it a convenient replacement for existing equipment or an easy integration into new systems.
In conclusion, the Balance Type Mechanical Seal With O-ring Stationary Seat is a high-quality solution that caters to the unique demands of rotating equipment in a wide range of industries. Its robust construction, material versatility, and innovative design features make it a reliable choice for those seeking efficient sealing solutions for challenging applications.
