Operating conditions:
Temperature: -40℃-150℃
Pressure: ≤ 1.7MPa
Speeds: ≤ 25m/sec
Applications: Used in all types of rotating equipment, pumps, mixers, agitators and compressors. To suit industries such as general chemical, oil refining, petrochemical, pharmaceutical, and food processing. pulp and paper, and wastewater treatment.
Materials(to DIN24960):
Rotary ring (Carbon/ SiC/ Anserted TC)
Stationary ring (SiC/ Inserted TC)
Secondary seal (NBR/ EPDM/ VITON)
Spring & Other parts (SUS304/ SUS316)
Materials should be selected according to operation condition
Design Features:

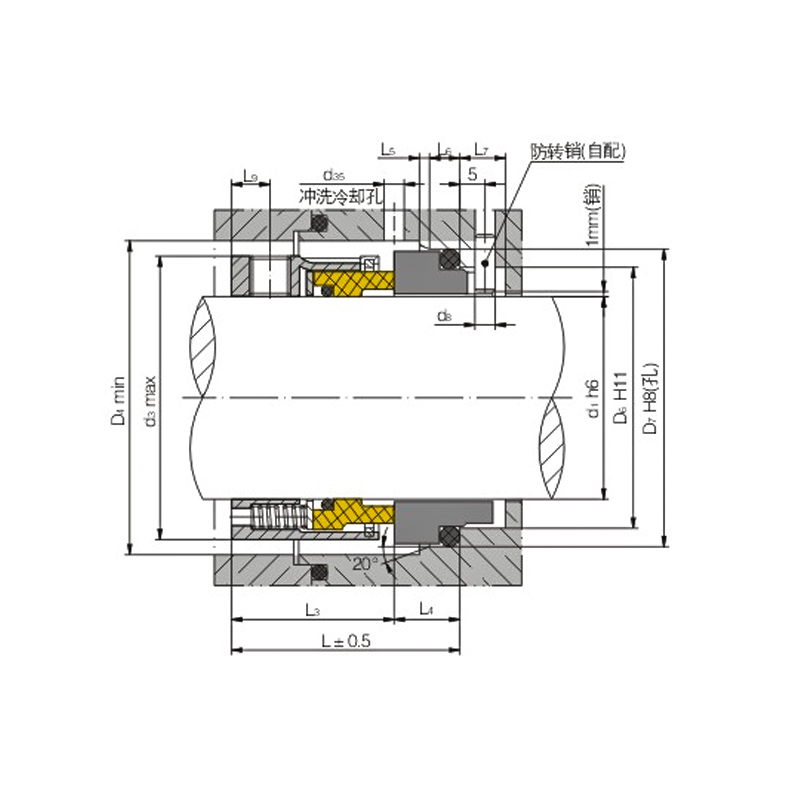

Internally mounted, single face, multi-spring, unbalanced structure and driven by brace ear and claw transmission, any rotation direction, compact construction, it can be mounted conveniently.
Conform to the standard of ISO3069、DIN24960 and GB6556.
O-ring pusher-type seal.
The shape and installation size are identical to 59U.

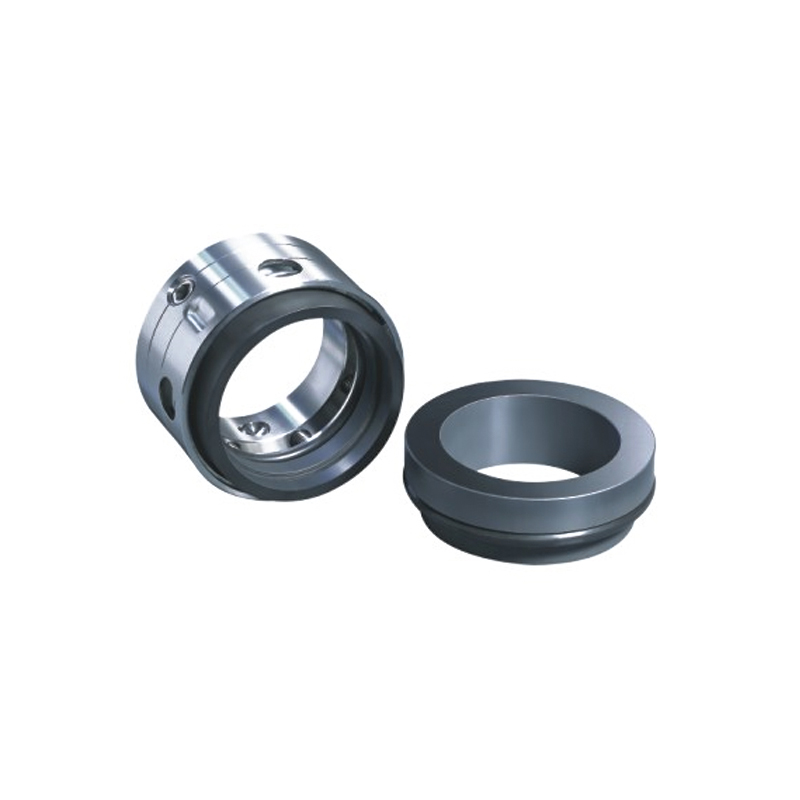

The Unbalanced Replacement O-Ring Pump Mechanical Seal is a high-performance mechanical seal designed to meet the demanding requirements of various industries. With a focus on durability and adaptability, this mechanical seal is engineered to excel under a wide range of operating conditions.
Operating Conditions:
This Mechanical Seal is built to perform under challenging conditions, with a temperature range of -40℃ to 150℃, a pressure of 1.7MPa, and operating speeds up to 25m/sec. These specifications make it suitable for a wide array of applications in industries where reliability is paramount.
Materials:
The Unbalanced Replacement O-Ring Pump Mechanical Seal complies with DIN24960 standards for materials, ensuring robust performance. Its construction includes:
Rotary ring: Options include Carbon, SiC (Silicon Carbide), or Anserted TC (Tungsten Carbide).
Stationary ring: Made of SiC or Inserted TC, which are renowned for their wear resistance and longevity.
Secondary seal: Choose from NBR, EPDM, or VITON, depending on your specific needs.
Spring & Other Parts: Constructed from high-quality SUS304 or SUS316 materials.
Customized Material Selection:
Selecting the appropriate materials is essential for performance, and this mechanical seal is designed to accommodate a variety of operation conditions, ensuring a precise fit for your specific needs.
Design Features:
The Unbalanced Replacement O-Ring Pump Mechanical Seal boasts several key design features that set it apart in the market:
Internally Mounted: This seal is internally mounted, which simplifies installation and maintenance.
Single Face: It features a single-face design, minimizing the risk of leakage.
Multi-Spring: With multiple springs, this mechanical seal ensures a secure seal even in demanding environments.
Unbalanced Structure: The unbalanced structure provides a reliable sealing solution for your equipment.
Driven by Brace Ear and Claw Transmission: The use of brace ear and claw transmission allows this seal to function seamlessly in any rotation direction.
Compact Construction: The compact design ensures ease of installation and a space-saving solution.
Conformance to Industry Standards: The Unbalanced Replacement O-Ring Pump Mechanical Seal adheres to the standards of ISO3069, DIN24960, and GB6556.
O-Ring Pusher Type Seal: The inclusion of an O-ring pusher-type seal guarantees an effective and dependable sealing solution.
Identical Shape and Installation Size: The shape and installation size of this seal match that of the 59U, making it a replacement option for existing equipment.
In conclusion, the Unbalanced Replacement O-Ring Pump Mechanical Seal is a good solution for a broad spectrum of industries, offering good performance under various operating conditions. Its robust design, adherence to industry standards, and adaptability make it a reliable choice for sealing your rotating equipment, ensuring smooth and efficient operations.
