Operating conditions:
Temperature: -40℃-150℃
Pressure: ≤ 0.5MPa
Speeds: ≤ 10m/sec
Applications: Used in automobile engine cooling water pump
Materials:
Rotary ring (Ceramic/ SiC)
Stationary ring (Carbon/ SiC)
Secondary seal (NBR/ HNBR/ EPDM/ VITON)
Spring & Other parts(SUS304)
Materials should be selected according to operation condition

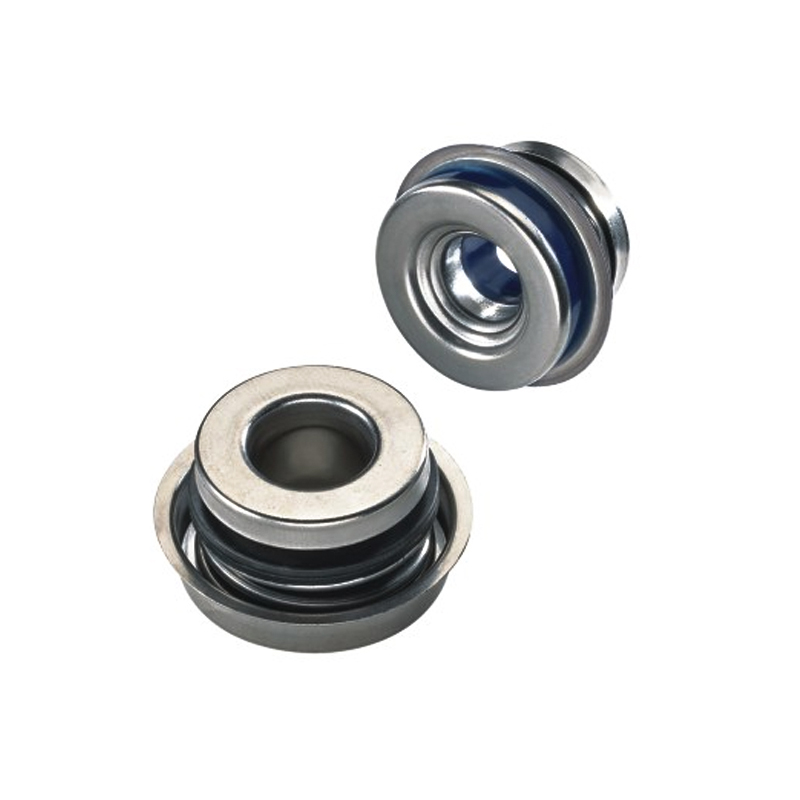

The Auto Engine Cooling Pump Monolithic Mechanical Seal is an essential component in automotive engine cooling systems, designed to maintain the integrity and efficiency of the cooling system under a wide range of operating conditions. This product boasts its durability, reliability, and performance, ensuring that your vehicle's engine remains at a temperature while withstanding the rigors of automotive use.
Operating Conditions:
Temperature: The seal can effectively function in temperatures ranging from -40°C to 150°C. This wide temperature range ensures that it remains reliable in both cold winter climates and scorching summer temperatures, maintaining the engine's thermal stability.
Pressure: The Auto Engine Cooling Pump Monolithic Mechanical Seal is designed to operate under pressures of up to 0.5MPa. This capability ensures the seal's ability to withstand the varying pressure conditions within an automotive cooling system.
Speeds: This mechanical seal can accommodate rotational speeds of up to 10 meters per second, ensuring it can efficiently handle the demands of an automotive engine's cooling water pump.
Applications:
The primary application of the Auto Engine Cooling Pump Monolithic Mechanical Seal is in the automotive industry, specifically within the engine cooling water pump. These seals play a pivotal role in ensuring that the engine remains at the appropriate temperature for performance and longevity. As the engine heats up during operation, the cooling system circulates coolant, and this mechanical seal helps prevent any leakage that could compromise the cooling process. It is a critical component in maintaining the engine's temperature and preventing overheating.
Materials:
Rotary Ring: The rotary ring is available in two material options, Ceramic and Silicon Carbide (SiC). Ceramic is known for its wear resistance and low friction properties, while SiC offers high chemical resistance. The choice between these materials is made based on the specific needs of the application.
Stationary Ring: Similarly, the stationary ring offers flexibility with two material options - Carbon and Silicon Carbide (SiC). Carbon is favored for its self-lubricating properties, while SiC is known for its hardness and corrosion resistance. The selection of the stationary ring material is dependent on the operational requirements.
Secondary Seal: The secondary seal is available in various elastomer options, including NBR (Nitrile Butadiene Rubber), HNBR (Hydrogenated Nitrile Butadiene Rubber), EPDM (Ethylene Propylene Diene Monomer), and VITON. The choice of secondary seal material depends on factors such as chemical compatibility and temperature resistance, ensuring a reliable seal in various conditions.
Spring & Other Parts: Springs and other small components of the seal are manufactured using SUS304 stainless steel. This material is corrosion-resistant and maintains its mechanical properties in a wide range of temperatures.
It is essential to emphasize that the selection of these materials should be made with careful consideration of the specific operational conditions in which the seal will be used. This ensures that the Auto Engine Cooling Pump Monolithic Mechanical Seal provides performance and longevity in your automotive cooling system.
In conclusion, the Auto Engine Cooling Pump Monolithic Mechanical Seal is a vital component in the automotive industry, playing a key role in maintaining engine temperature and preventing overheating. Whether facing temperatures, varying pressures, or high speeds, this mechanical seal is the dependable choice for your engine cooling water pump needs. Make the right choice for your vehicle's cooling system by selecting the Auto Engine Cooling Pump Monolithic Mechanical Seal.
